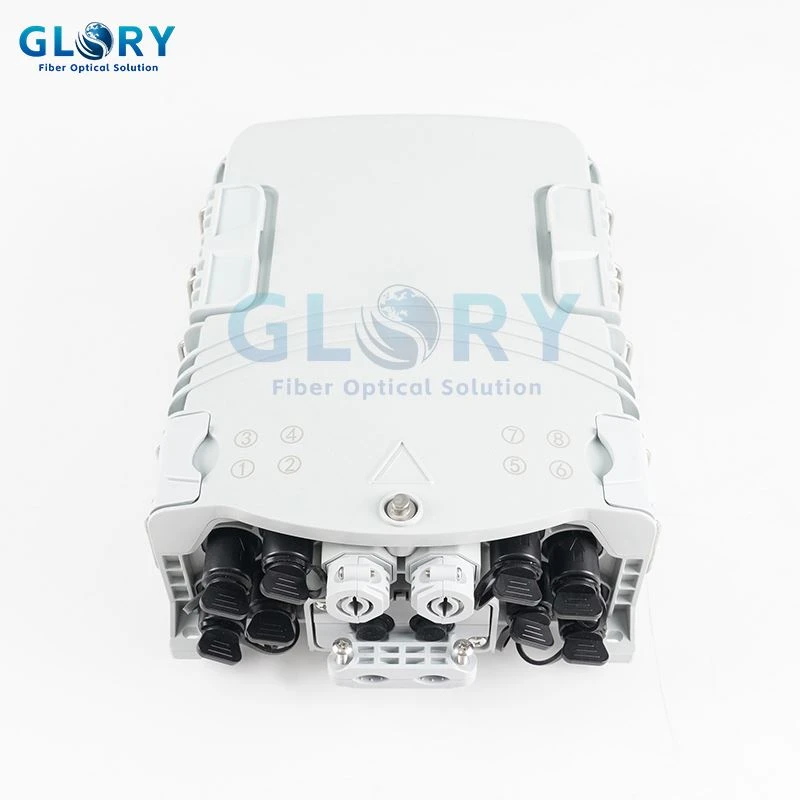

Optical Fiber Distribution Box
Yam khoom: Optical Fiber Distribution Box
Qauv: GL-FSN-0408R
• IP65 waterproof, sab nraum zoov hom
• Kev txhim kho txoj kev: Phab ntsa / Ncej / Aerial mounting
• Preconnected FTTX Fiber Access Terminal Box
Kev sib txuas ua ntej Fiber Distribution Box yog cov cuab yeej tshaj plaws FTTX network faib cov khoom siv, muab kev sib txuas ceev thiab txhim khu kev qha, kev tiv thaiv zoo, thiab kev tswj hwm rau FTTX network.
- Khoom Taw qhia
GL-FSN-0408R Optical Fiber Distribution Box yog siv los ua ib qho kev txiav tawm rau lub feeder cable los txuas nrog cov xaim xaim hauv FTTx kev sib txuas lus network. Cov fiber ntau splicing, splitting, thiab faib yuav ua tau nyob rau hauv lub thawv no, tsis tas yuav qhib lub thawv nrog pre-txuas connectors. Nws muab kev tiv thaiv thiab kev tswj hwm zoo rau FTTx network tsev. Lub compact loj thiab flip-over cover coj tau yooj yim ua hauj lwm nrog rau ntau lub hom phiaj daim ntawv thov. Nws tuaj yeem ntsia tau rau hauv huab cua, phab ntsa, ncej mounted hom.
Specifications
|
Yam khoom npe |
Optical Fiber Distribution Box GL-FSN-0408R |
|
Loj |
319 x 200 x 97.5 mm |
|
Tus nqi IP |
IP65 |
|
Khoom siv |
PC + ABS (Grey) |
|
Input cable txoj kab uas hla (mm) |
Uncut 8-14mm |
|
Ceg qhov cable txoj kab uas hla (mm) |
16 hli |
|
Muaj peev xwm |
36 fibers |
|
Waterproof Adapter |
8 pcs ib |
|
Splitter hom |
1x8 Mini hom splitter |
|
Ua haujlwm kub |
-40 degree -+85 degree |
|
Txoj Kev Mounting |
Phab ntsa / ncej / aerial mounting |
|
Ua haujlwm kub |
-40 degree ~ +85 degree |
|
txheeb ze humidity |
Tsawg dua lossis sib npaug li 85% (+30 degree) |
|
Atmospheric siab |
70KPa ~ 106KPa |
|
Cov ntaub ntawv tseem ceeb |
Insertion poob: Tsawg dua lossis sib npaug rau 0.15dB UPC rov qab poob: Ntau dua lossis sib npaug rau 50dB APC rov poob: Ntau dua lossis sib npaug rau 60dB |
Dimensional drawings:
Feature
• Optical Fiber Distribution Box muaj me me thiab zoo nkauj tsos.
• Modular tsim thiab kev faib ua haujlwm.
• Plug thiab ua si, FastConnect nco cable es tsis txhob splicing, muab ntsia tsis tau qhib lub thawv.
• Faster cable nyob rau hauv cia thiab sealing modules ua rau installation zoo.
• Txhawb xa cov fibers los ntawm tib lub raj xoob mus rau hauv cov tais sib txawv.
• Yooj yim splicing tais tsim.
• Lub thawv tuaj yeem ntsia tau los ntawm txoj kev ntawm phab ntsa-mounted lossis poled-mounted, haum rau kev siv sab hauv tsev thiab sab nraum zoov.
• Khoom siv: PC + ABS, ntub-pov thawj, dej-pov thawj, plua plav-pov thawj, tiv thaiv kev laus, tiv thaiv qib mus txog IP65.
8 Ports Preconnected Optical Fiber Distribution Box Daim Ntawv Thov:
• FTTH Daim Ntawv Thov;
• Fiber optic kev sib txuas lus nyob rau hauv hnyav sab nraum ib puag ncig;
• Cov khoom siv sib txuas lus sab nraum zoov kev sib txuas;
• Waterproof fiber ntau SC chaw nres nkoj;
• Chaw nres tsheb wireless chaw taws teeb;
• FTTx FTTA thaiv qhov project.
Cov khoom siv cable txoj kev:
Installation Method:
• Phab ntsa-mounted installation
Laum 3 qhov rau hauv phab ntsa raws li qhov loj me me, tso cov ntsia liaj qhov rooj Φ7.5x40, tso qhov Optical Fiber Distribution Box kom phim cov qhov thiab siv ntsia liaj qhov rooj kom ceev.
• Ncej-Mounted Installation
Txhim kho 1 teeb ntawm lub nplhaib ncej rau lub telecom ncej
• Aerial Mounting
Khi ob qho tib si ntsia rau ntawm lub chassis ntawm cov nyiaj siv ua haujlwm dai ntawm cov hlau, thiab tom qab ntawd bolted, tiv thaiv rooj plaub.
