Fiber ntau Distribution Davkas MST Fibhub Lub thawv

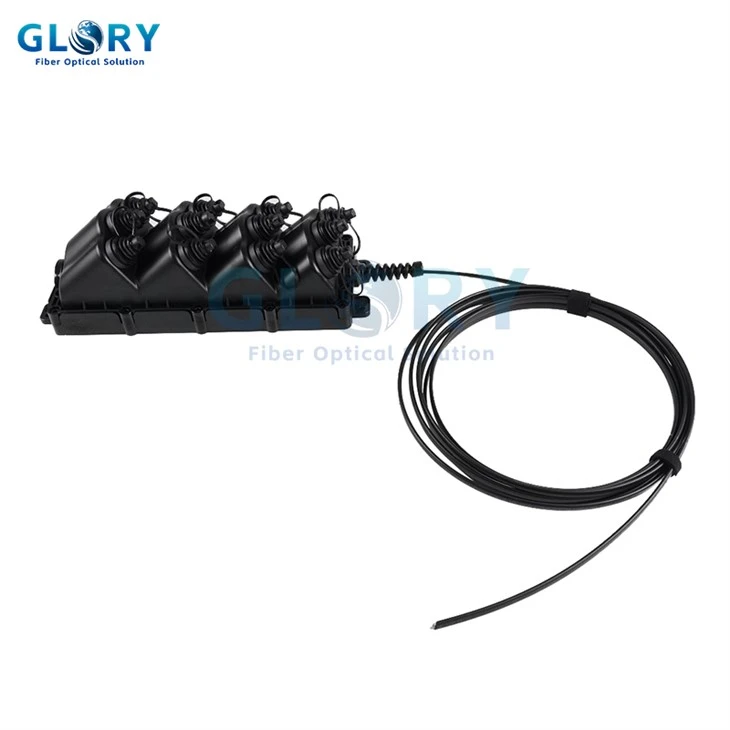

Lub Fiber ntau Dispinal Todinal MSTO BOX GL-MST01-12 Fiberub yog qhov tshiab thiab kev daws teeb meem kev lag luam rau kev siv sab nraum zoov. Piv rau cov khoom lag luam tsoos, FiberHhub yooj yim ua haujlwm thiab muab siab sib haum. Nws tuaj yeem siv rau phab ntsa-mounting, Aerial installation, lossis ncej-ncej nruab, raws li qhov xwm txheej. FiberHhub yog siv tsis tsuas yog nyob rau hauv cov ftth teb, tab sis kuj hauv FTTA lossis lwm qhov chaw hnyav.



Lub thawv no yog ntau yam optic cov khoom siv fiber ntau Optic sib txuas nrog cov qauv kev tsim qauv sab hauv. Nws yog feem ntau ua haujlwm hauv kev sib txuas lus kho qhov muag rau kev sib txuas lus, faib tawm, thiab kev tiv thaiv. Qhov no 12-core Fottic Hub Box los nrog Hardened Fastconnect Adapmors thiab yog tshaj tawm cov khoom lag luam thiab cov kev daws teeb meem rau FTTA.



Cov lus qhia tshwj xeeb:



Yam npe	Fiber ntau faib davhlau ya nyob tseem ceeb mst lub thawv gl-mst01-12
Qhov loj	137.9x364.7x110.2mm
Tus kab	Ms68
Khoom Yam	Kev nkag mus rau lub davhlau ya nyob twg
Chaw nres nkoj	12 Chaw Ports
Khoom uas pauv tau ib yam	Optitap sc, Optitap LC Duplex, Optitap MPO
Qhov chaws nkag	Cable pas pas lossis Optitap Adapter
Feeder Cable	1, 2, 4, 6, 8, 12 cores rau cov kev xaiv
Pub Cable Ntev	Me nyuam
Daim hom stub	Tus Tsov yeej tw
Tus Tsov yeej tw	-40 rau +85 degree
Txoj Kev Mounting	Ncej, pedestal, sandhole, lossis strand mounting



Cable specifications:



Cable Hom	Tiaj Tus Cable
Hlua loj	3.0x4.5mm; 4x7mm; 4.5x8.1mm; 4.5X9.8mm
CIB CABLE	1
Cable Stub ntev	50meter mus rau customized
Attenuation, qhov siab tshaj plaws	0.30 db / km @ 1550 nm|0.40 db / km @ 1310 nm
Kev Ua Haujlwm, Yam tsawg kawg nkaus	60 DB
Yoj yoj muaj ntau	1260-1635 nm
Kev nkag mus poob, davhlau ya nyob twg txuas, max.	0.4db
Rov qab poob, connector, tsawg kawg	65db



Qhov loj me ntawm kev faib tawm fiber ntau lub davhlau ya nyob GL-MST01-12



Nta:





• Muaj feem sib haum xeeb: tuaj yeem sib dhos nrog ODVA, H txuas ntxiv), Mini sc, ODC, PTLC, PTMPO, lossis lub hwj chim.

• Lub Hoobkas-sealed lossis teb los ua ke.

• IP68 dej thiab plua plav tiv thaiv.

• Lub zog tensile siab: muaj peev xwm ua haujlwm nyob rau hauv ib 1200n rub tawm dag zog ntev.

• Muaj nyob rau hauv 2 txog 12 cov chaw nres nkoj rau ib qho lossis cov pej xeem muaj ib puag ncig.

• Tsim nyog rau phab ntsa-mounting, Aerial installation, lossis ncej-mounting.

• Txo lub kaum sab xis thiab thaj chaw tiv thaiv kev sib txuas txuas rau kev cuam tshuam thaum ua haujlwm.

• Ua raws li cov IEC 61753-1.

• Nqi-tau zoo: Txuag sijhawm 40% lub sijhawm teeb tsa.

• Muaj nrog PLC splitter lossis cov roj txaws rau fiber ntau.



Cov Ntawv Thov:



• FTH teb

• FTTA teb

• Cov Tsheb Cable Txuas

• Kev sib txuas lus lossis kev sib txuas lus ua tub rog



MST Fiber chaw qhib lub thawv universal mounting
