MPO Assemblies: Lub Txheej Txheem Txheej Txheem rau Niaj Hnub No, Scalable Data Centers

Taw qhia: Tshaj Tawm Cable - Lub Hauv Paus rau Kev Hloov Hloov Digital

Nyob rau hauv siab -stakes ib puag ncig ntawm niaj hnub cov ntaub ntawv chaw, network architects ntsib ib tug relentless trilemma: qhov yuav tsum tau rau exponentially ntau dua bandwidth, loj heev kev txwv ntawm lub cev, thiab uncompromising xav tau kev cia siab thiab ua hauj lwm agility. Raws li kev nrawm nrawm los ntawm 40G thiab 100G mus rau 400G thiab 800G, cov tsoos duplex fiber ntau cabling dhau los ua ib qho fwj, tsim kom muaj spaghetti -zoo li maze uas siv qhov chaw muaj txiaj ntsig, ua rau txias txias, thiab cuam tshuam kev xa tawm sai.



Qhov kev daws teeb meem rau qhov kev sib tw nyuaj no tsis yog ib qho kev tivthaiv nkaus xwb, tab sis yog ib qho system: MPO/MTP ua ntej- txiav kev sib dhos. Ntau tshaj li "cable," ib qhov dej - tsim MPO ecosystem yog lub hauv paus ntsiab lus rau kev siab - ntom, siab -bandwidth, thiab yav tom ntej- pov thawj network infrastructure. Nws sawv cev rau qhov kev hloov pauv tseem ceeb los ntawm thaj teb -tawm, taw tes- mus rau - taw tes kev sib txuas mus rau cov qauv tsim, tswj tau, thiab ua kom muaj peev xwm.

Rau ntau tshaj 15 xyoo, Glory tau nyob rau hauv pem hauv ntej ntawm qhov kev hloov pauv no, kev tsim kho MPO cov kev daws teeb meem uas tsis yog txuas cov chaw nres nkoj nkaus xwb tab sis daws cov teeb meem tseem ceeb ntawm lub cev txheej txheem ntsib cov ntaub ntawv thoob ntiaj teb thiab kev sib tham hauv xov tooj.



Lub cav ntawm qhov ceev thiab ceev: Vim li cas MPO tsis yog -Ngotiable

Tus nqi tawm tswv yim ntawm MPO thev naus laus zis yog hauv paus hauv radical efficiency.

• Space thiab Density Multiplier:Ib qho MPO connector (nrog rau hneev taw me me li 0.7 "x 0.4") tuaj yeem sib sau ua ke 12, 24, lossis 48 fibers. Qhov no hloov mus txog 24 qhov sib cais LC duplex sib txuas, tshem tawm qhov chaw khib nyiab tseem ceeb rau cov khoom siv, txhim kho airflow, thiab ua kom yooj yim txoj hauv kev tswj. Qhov tshwm sim yog ib qho chaw huv huv heev uas txo cov nqi cua txias thiab txo qhov kev pheej hmoo ntawm kev cuam tshuam kev cuam tshuam thaum tsiv, ntxiv, lossis hloov pauv.

• Tus Enabler ntawm Parallel Optics:High- cov qauv kev ceev xws li 40G SR4, 100G SR4, thiab 400G SR8 vam khom rau qhov sib npaug ntawm cov khoom sib txuas- xa ntau cov ntaub ntawv ntws ib txhij hla ntau cov fibers. MPO interface yog haiv neeg, txheej txheem lub cev txheej txheem rau cov thev naus laus zis no. Kev xa tawm MPO- cov qauv cabling cog yog li ntawd tsis yog ib qho kev xaiv tab sis yog qhov yuav tsum tau ua ua ntej rau kev tsiv mus rau thiab tshaj 100G.

• Guaranteed Performance los ntawm lub Hoobkas:Tsis zoo li kev sib txuas ntawm thaj chaw, Glory's MPO cov rooj sib txoos yog ua ntej- txiav thiab kuaj raws li kev tswj hwm ISO 9001 lub Hoobkas. Qhov no tau lees paub zoo ib yam, tsis tshua muaj qhov poob qis thiab rov qab poob siab thoob plaws txhua qhov fiber ntau, tshem tawm qhov hloov pauv loj hauv kev sib txuas ntawm kev suav nyiaj txiag thiab kom ntseeg tau tias kev ua haujlwm network pib muaj zog thiab nyob ruaj khov.

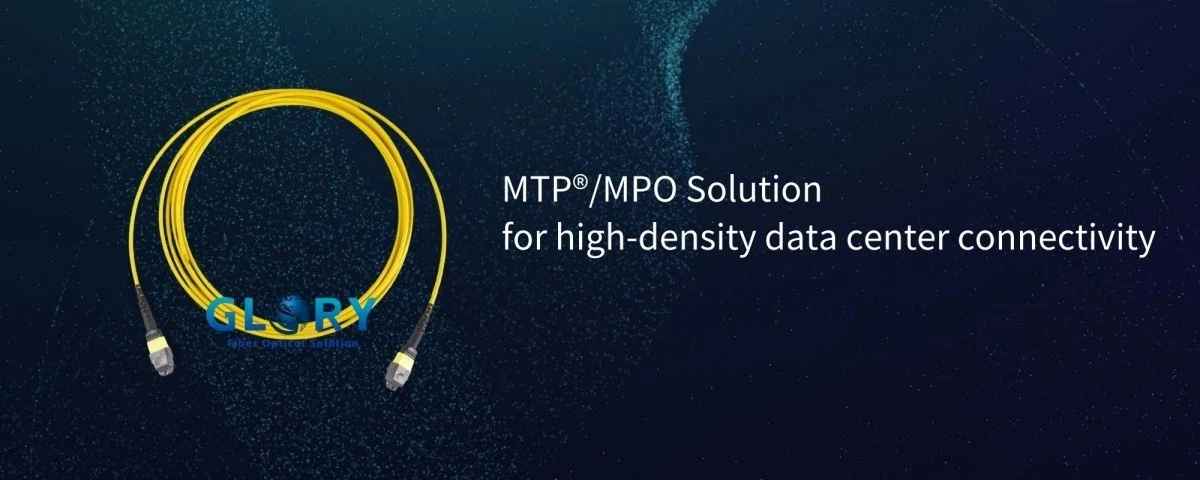

Glory Integration Point:Peb cov ntaub ntawv pov thawj yog tsim los rau lub luag haujlwm tseem ceeb no. Los ntawm siab- ntom ntom MTP / MPO lub cev cables rau txha nraub qaum- nplooj qaum kev sib txuas rau cov hlua khi rau sab saum toj- ntawm - khib hloov, peb muab cov ntawv pov thawj, txhim khu kev qha lub cev txheej uas siab - kev sib txuas ceev tau tsim los ntawm.

Tus kws kes duab vajtse phau ntawv qhia: Navigating MPO xaiv thiab teeb tsa

Xaiv qhov MPO tivthaiv yog qhov kev txiav txim siab tsim qauv tseem ceeb. Ntawm no yog cov txheej txheem txheej txheem los xyuas kom meej qhov kev xaiv zoo.

Kauj Ruam 1: Txhais lub Cev Lub Cev Architecture - Xaiv Koj Hom Cable

Hom kab	Connector xaus	Thawj Siv Case	Zoo tagnrho Rau
MPO Lub cev Cable	MPO to MPO	Tsim cov txheej txheem qaum qaum ntawm cov panels lossis modules.	Kev sib txuas cov vaj huam sib luag hauv MDA, IDA, lossis HDA zones.
MPO Breakout / Khawm	MPO to LC/SC	Txuas siab -ntaus MPO ports rau cov khoom siv ports txheem.	"Fanning tawm" hloov MPO chaw nres nkoj rau ntau lub server SFP + lossis QSFP chaw nres nkoj.
Hloov MPO Cable	MPO rau MPO (sib txawv fiber ntau suav/configurations)	Kev hloov pauv ntawm cov qauv MPO sib txawv yam tsis muaj kev txuas ntxiv.	Txuas lub cev 24-fiber mus rau ob lub 12-fiber hloov chaw nres nkoj lossis rov kho qhov polarity.

Kauj Ruam 2: Ua tus tswv qhov tseem ceeb Parameters



• Polarity (Qhov feem ntau pitfall):Xyuas kom xa cov chaw nres nkoj sib txuas kom tau txais cov chaw nres nkoj hla qhov sib txuas ntawm qhov sib txuas yog tswj hwm los ntawm polarity. Peb txoj hauv kev tseem ceeb (TIA-568-pom zoo) yuav tsum ua raws li qhov systematically. Lub hwjchim ci ntsa iab muab cov ntawv sau meej meej thiab kev taw qhia rau Hom A, B, thiab C cov tswv yim kom ntseeg tau tias tsis muaj kev sib txuas tsis raug.

• Fiber hom & Polish:Multimode (OM3 / OM4 / OM5, beige / txiv kab ntxwv / aqua) nrog UPC polish yog tus qauv rau intra-cov ntaub ntawv chaw luv luv- mus txog daim ntawv thov. Singlemode (OS2, daj) nrog angled APC polish yog rau ntev - nrug, siab - kev ua haujlwm qaum. Xaiv qhov tsis ncaj ncees lawm yam guarantees tsis ua hauj lwm.

• Connector Poj Niam Txiv Neej (Key-up/Key-down) thiab Key Alignment: Kev sib raug zoo yog qhov tseem ceeb rau kev sib tw. Peb cov rooj sib txoos tau qhia meej meej kom ntseeg tau tias kev sib raug zoo ntawm cov cables, adapters, thiab cov khoom siv.

Kauj Ruam 3: Npaj rau Daim Ntawv Thov Tshwj Xeeb

• Rau 40/100G SR4 kev sib txuas, 8-fiber lossis 12-fiber MPO pob tw yog tus qauv.

• Rau 400G SR8 / DR4 thiab yav tom ntej ceev, 16-fiber lossis 24-fiber MPO systems yuav tsum tau.

• Xav txog khoov-insensitive fiber ntau (BIMMF) rau kev tswj cov kab nrib pleb thiab plenum lossis LSZH- cov tsho tiv thaiv kom ua raws li cov cai tiv thaiv hluav taws hauv zos.

Glory Integration Point:Peb simplify qhov complexity. Peb pab pawg kws tshaj lij pab cov kws tsim qauv tshawb nrhiav cov kev xaiv no, muab tsis yog cov khoom lag luam nkaus xwb tab sis kev sib koom ua ke tag nrho -hauv qhov ntev, hom polarity, suav fiber ntau, thiab lub tsho ntaus nqi- kom phim cov qauv tsim qauv.

Lub neej yav tom ntej- Pov Thawj Txuas: MPO ua lub Platform rau Agility thiab Intelligence

Kev nqis peev hauv MPO infrastructure them nyiaj mus sij hawm ntev - cov nyiaj faib los ntawm kev ua kom muaj kev sib raug zoo network thiab kev txawj ntse.

• Ua kom yooj yim "Plug-thiab-Play" Scalability:Nrog ib tug qauv MPO qaum nyob rau hauv qhov chaw, scaling muaj peev xwm feem ntau yuav tsum tau tsuas yog ntxiv tshiab trunk cables thiab modules, tsis overhauling tag nrho cable cog. Qhov no txo ​​qis lub sijhawm xa mus rau cov cuab yeej tshiab lossis nthuav tawm los ntawm lub lis piam mus rau hnub.

• Lub plawv ntawm Agile Connectivity:Lub hwjchim ci ntsa iab MPO hloov dua siab tshiab cables yog cov tsis muaj peev xwm ua tau yooj yim. Lawv tso cai rau cov neeg ua haujlwm hauv lub network los kho qhov kev sib txuas ntawm lub cev ntawm ntau tiam neeg lossis hom khoom siv yam tsis tau kov lub pob txha pob txha. Qhov no hloov static cabling rau hauv ib qho kev pab cuam dynamic.

• Foundation for Intelligent Infrastructure Management (IIM):Ib tug huv, qauv MPO cog yog yooj yim integrated nrog RFID thiab hluav taws xob mus txog qhovtwg tshuab. Txhua qhov chaw nres nkoj thiab cable dhau los ua cov cuab yeej digital tswj tau, ua kom muaj cov ntaub ntawv raug, kev daws teeb meem hauv thaj chaw deb, thiab kev npaj peev xwm twv ua ntej- cov khoom tseem ceeb ntawm software- tau txhais cov ntaub ntawv chaw.

Tsim kev ntseeg siab, Ib qho kev sib txuas ntawm ib lub sijhawm

Hauv kev xaus, xaiv MPO system yog qhov kev txiav txim siab zoo uas txhais tau hais tias lub chaw khaws ntaub ntawv muaj peev xwm, kev ntseeg tau, thiab kev hloov pauv rau nws lub neej tag nrho. Nws yog qhov tseem ceeb, feem ntau tsis txaus siab, lub hauv paus ntawm qhov kev hloov pauv digital tau tsim.

Ntawm Glory, peb muab ntau tshaj li hwm MPO / MTP cables thiab cov rooj sib txoos. Peb xa cov kev daws teeb meem ntawm lub cev ntse uas txhawb nqa los ntawm kev txawj ntse engineering. Peb lub hom phiaj yog los hloov cov txheej txheem cabling los ntawm lub peev xwm ntawm qhov tsis ua hauj lwm mus rau hauv cov ntaub ntawv, txhim khu kev qha, thiab agile cuab tam uas txhawb nqa koj lub network kom tau raws li cov kev xav tau ntawm tag kis.

Npaj txhij los tsim ib tug ntau scalable thiab tswj tau cov ntaub ntawv center network?

Hu rau Glory cov kws tshaj lij niaj hnub no rau kev sab laj tus kheej, thiab cia peb pab koj tsim thiab siv MPO lub hauv paus uas hloov koj lub zeem muag hauv lub network mus rau kev ntseeg siab, siab -kev ua tau zoo.
